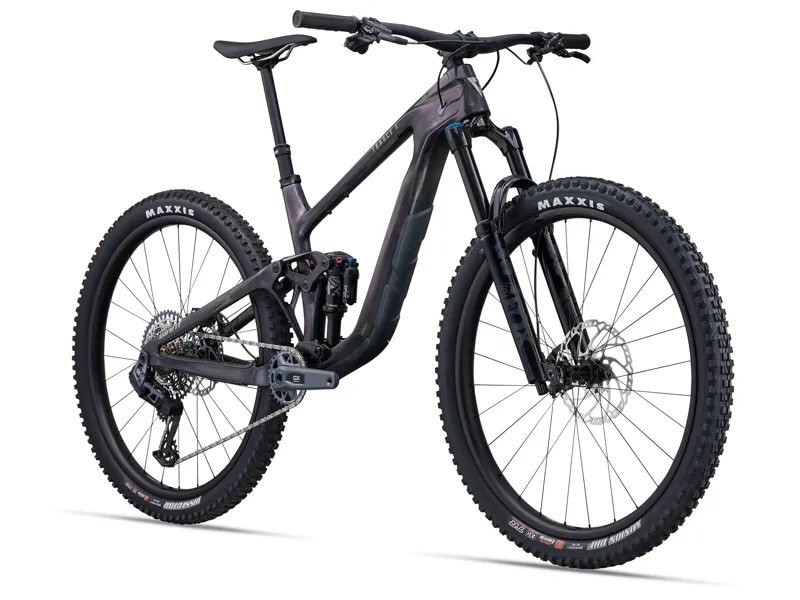

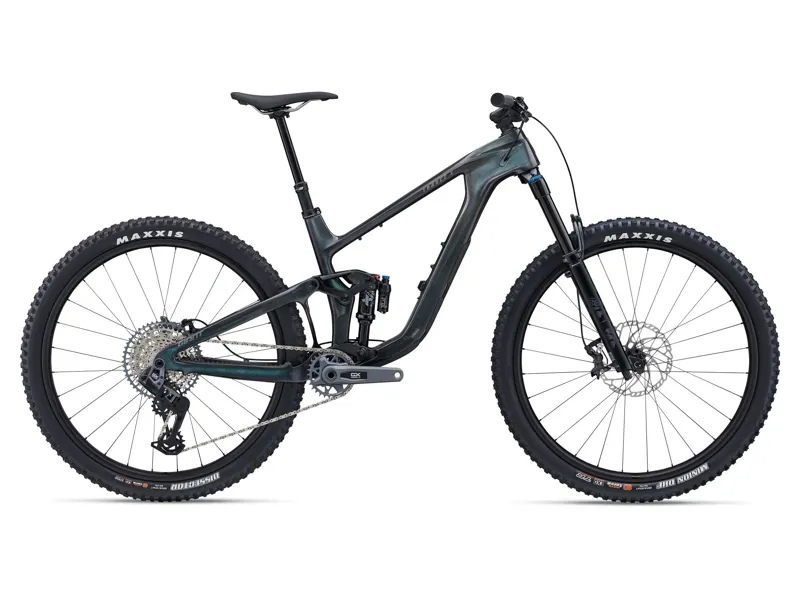

Giant - Trance X Advanced 1 Mountain Bike In Arctic Light

Season:2024

Brand:Giant

Code:9109004ArcticLight

Float up technical climbs and sail down chunky descents.

This all-new, full-composite trail bike gives you 140mm of smooth maestro rear suspension and all sorts of adjustability. You can dial in frame geometry and switch the rear wheel size for the terrain.

Features:

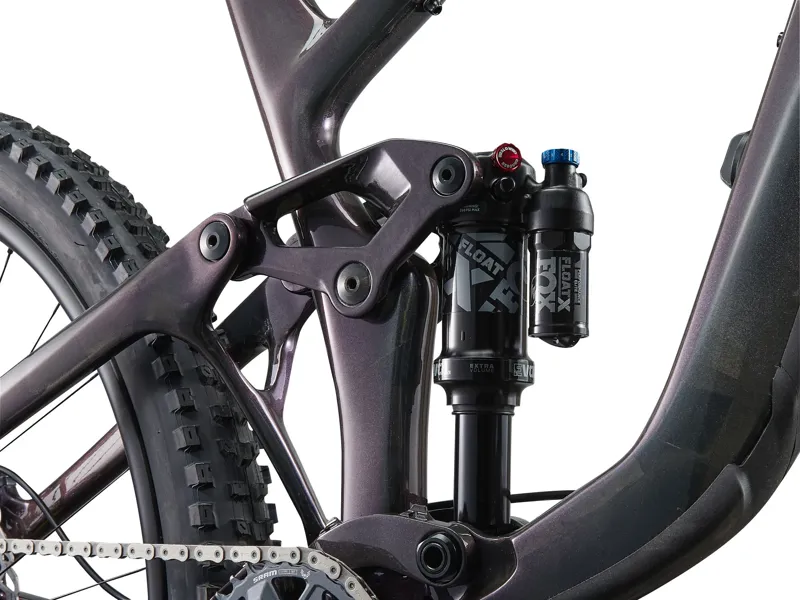

  • More Travel - New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.
  • Adjustable trail geometry - A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of reach adjustment.
  • Rear wheel options - All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock setup optimises stability and roll-over speed, while a 27.5 rear wheel delivers a snappier feel and more saddle-to-tire clearance. Some riders favour this “mullet” setup for riding steep, technical terrain.
Technical Information
  • Sizes
    S, M, L, XL
  • Colours
    Gloss Arctic Light/Chrome
  • Frame

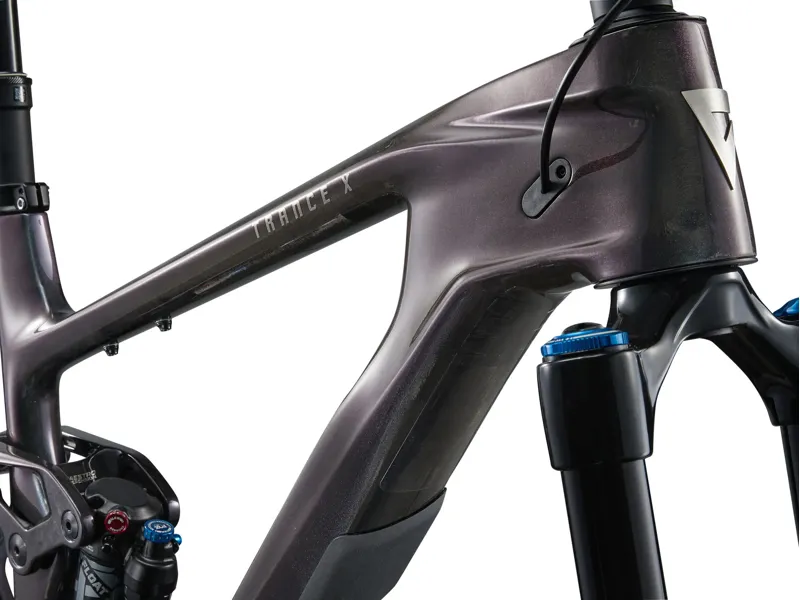

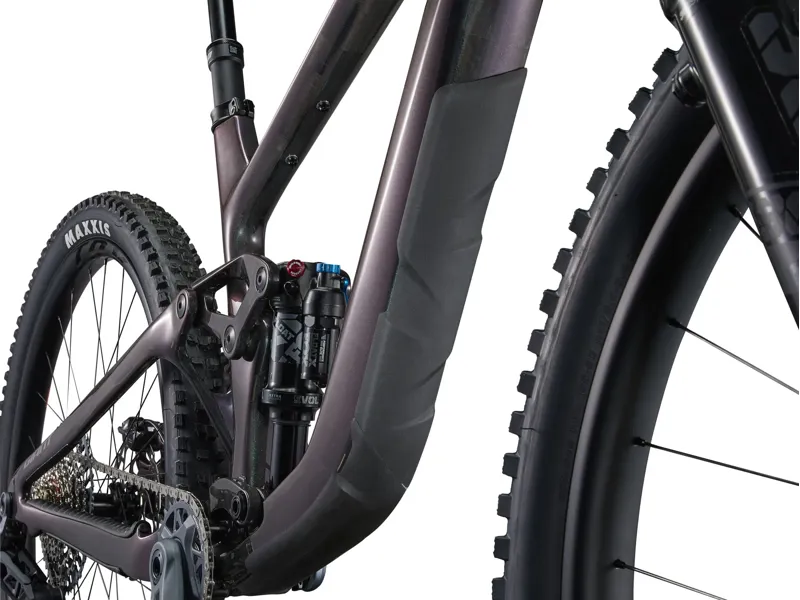

    Advanced-grade composite front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle
  • Fork
    Fox 36 Performance Elite, GRIP2 damper, 44mm offset, 150mm, 15x110 Kabolt X, custom tuned for Giant
  • Shock
    Fox Float X Performance Elite, 185/52.5, custom tuned for Giant
  • Handlebar
    Giant Contact SLR TR35, 780x35mm, 20mm rise
  • Grips
    Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
  • Stem
    Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
  • Seatpost
    Giant Contact Switch Adjustable, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
  • Saddle
    Giant Romero SL
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters

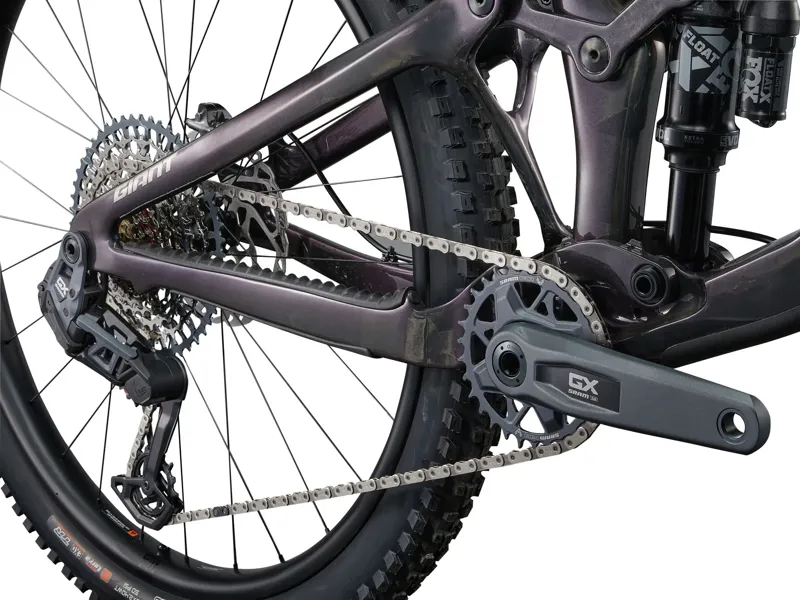

    SRAM AXS, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    SRAM GX Eagle Transmission AXS
  • Brakes
    Shimano Deore XT BR-MT8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
  • Brake Levers
    Shimano Deore XT BL-M8100
  • Cassette
    SRAM GX-1275, 10x52
  • Chain
    SRAM GX Eagle
  • Crankset
    SRAM GX, 30t, 55mm chainline
  • Bottom Bracket
    SRAM DUB, Press Fit
  • Rims
    Giant TRX, 29" hookless carbon wheelsystem, 30mm IW, 40mm OW, 22mm H, 72t POE, 28 SP spokes, DBL technology, XD driver body
  • Hubs
    [F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, XD driver body
  • Spokes
    Sapim, 28, straight pull, DBL Technology
  • Tyres
    [F] Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless
  • Extras
    Factory tubeless set up, 2.5" max tyre size, 34t max chainring size, 3M tailgate protector
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
Sizing Information
Frame SizeRider Height (cm)
S163 cm to 172 cm
M171 cm to 180 cm
L179 cm to 188 cm
XL187 cm to 196 cm
Sizing should be used as a reference only.


SMLXL
LOW|MID|HIGHLOW|MID|HIGHLOW|MID|HIGHLOW|MID|HIGH
Seat Tube Length(MM)400425450475
Seat Tube Angle76.8°|77.2°|77.5°76.8°|77.2°|77.5°76.8°|77.2°|77.5°76.8°|77.2°|77.5°
Top Tube Length(MM)571|570|569602|601|600624|623|622657|656|655
Head Tube Length(MM)100105115125
Head Tube Angle64.4°|64.8°|65.1°64.4°|64.8°|65.1°64.4°|64.8°|65.1°64.4°|64.8°|65.1°
Fork Rake(MM)44444444
Trail(MM)134.1|131.3|128.4134.0|131.3|128.5133.9|131.3|128.5133.9|131.3|128.6
Wheelbase(MM)1190|1190|11891222|1222|12211246|1246|12451281|1280|1280
Chain Stay Length(MM)440|439|438440|439|438440|439|438440|439|438
Bottom Bracket Drop(MM)40|35|3040|35|3040|35|3040|35|30
Stack(MM)617|614|611621|619|616631|628|625640|637|634
Reach(MM)426|430|434456|460|464476|480|484507|510|514
Stand Over Height(MM)733|737|742737|741|746754|759|763752|757|762
Handlebar Width(MM)800800800800
Stem Length(MM)40405050
Crank Length(MM)165170170170
