Accelerate up climbs, float through rock gardens, experience more power, agility and control with this lightweight, full-suspension E-MTB. A new ultra-slim battery minimises weight so you can ride technical trails the way you always dreamed of.
Accelerate up climbs, float through rock gardens, experience more power, agility and control with this lightweight, full-suspension E-MTB. A new ultra-slim battery minimises weight so you can ride technical trails the way you always dreamed of.
Giant

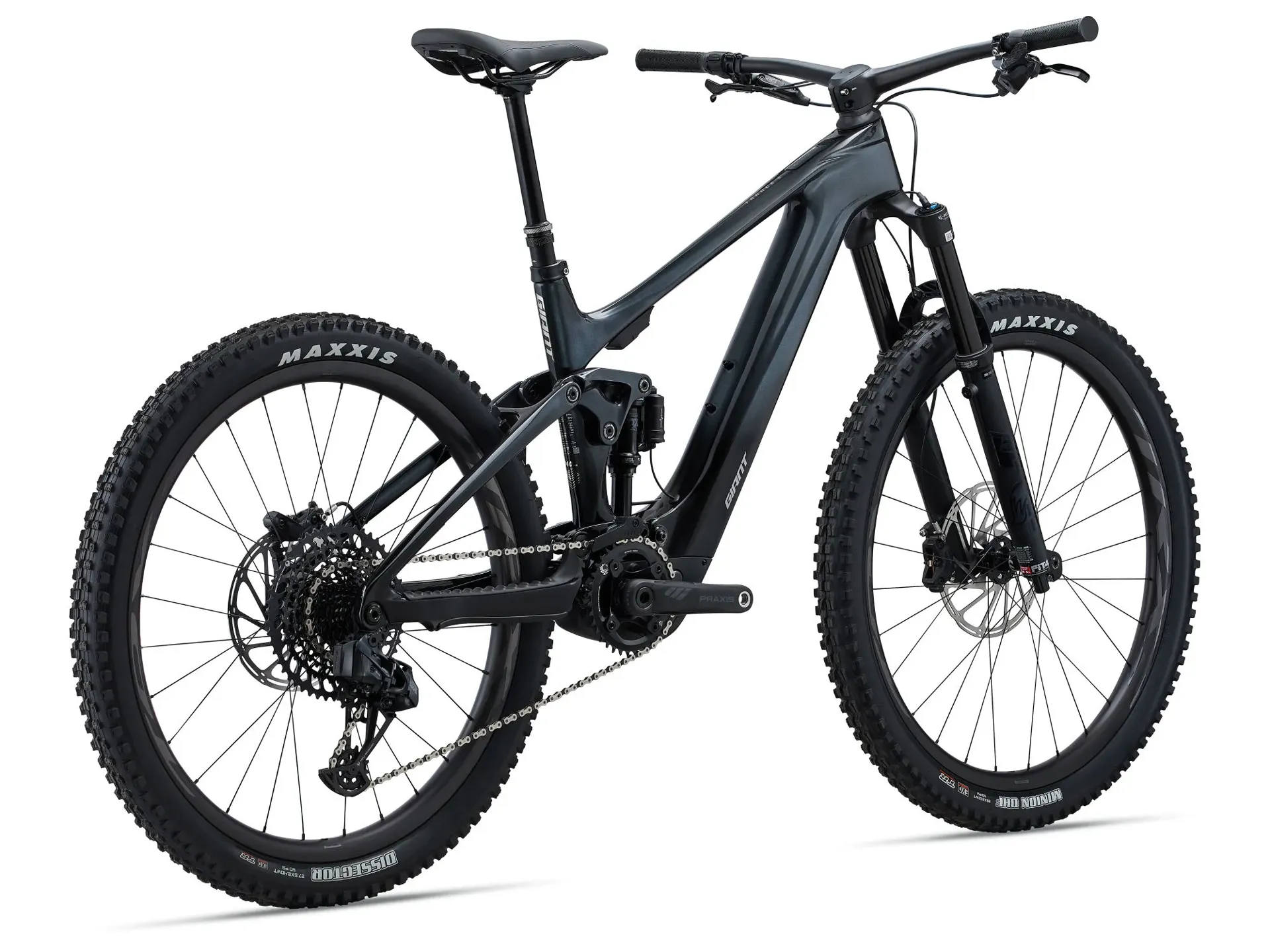

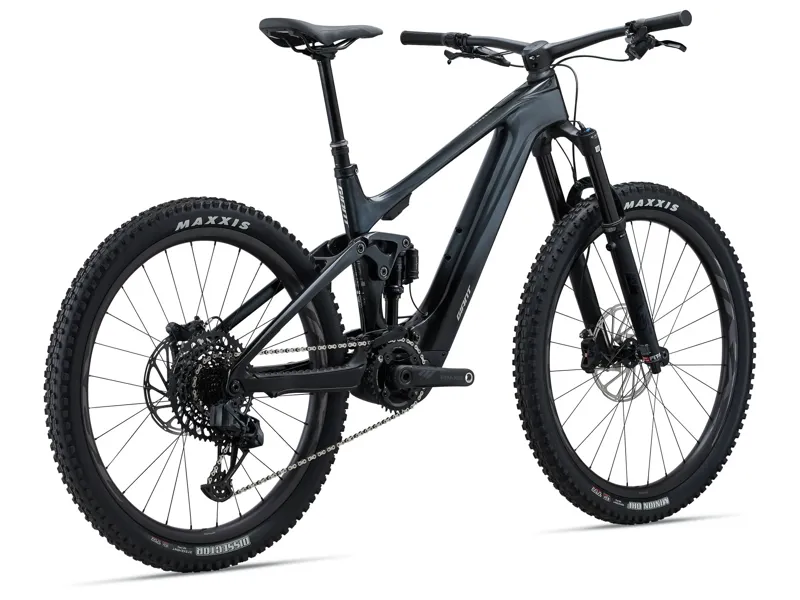

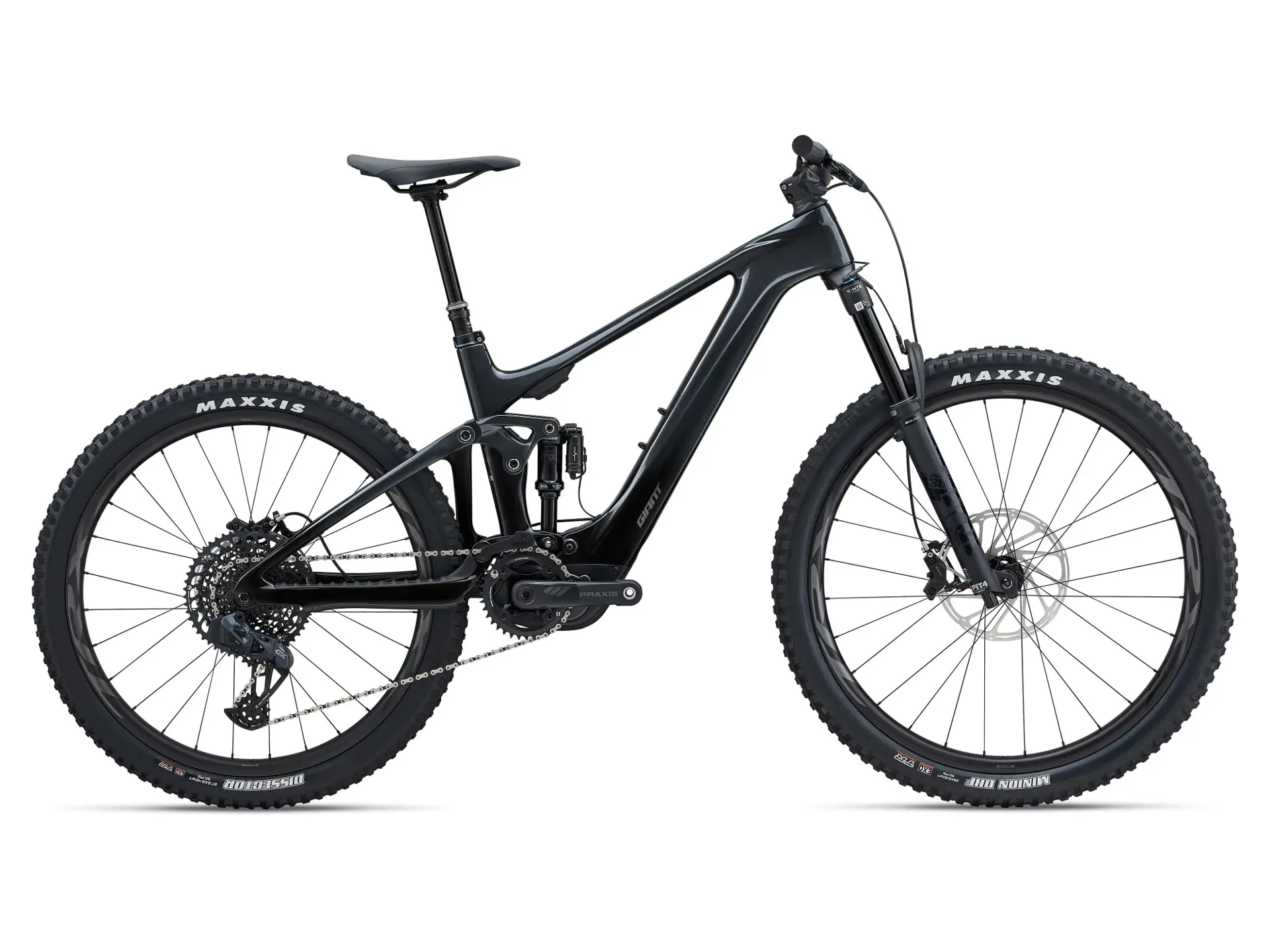

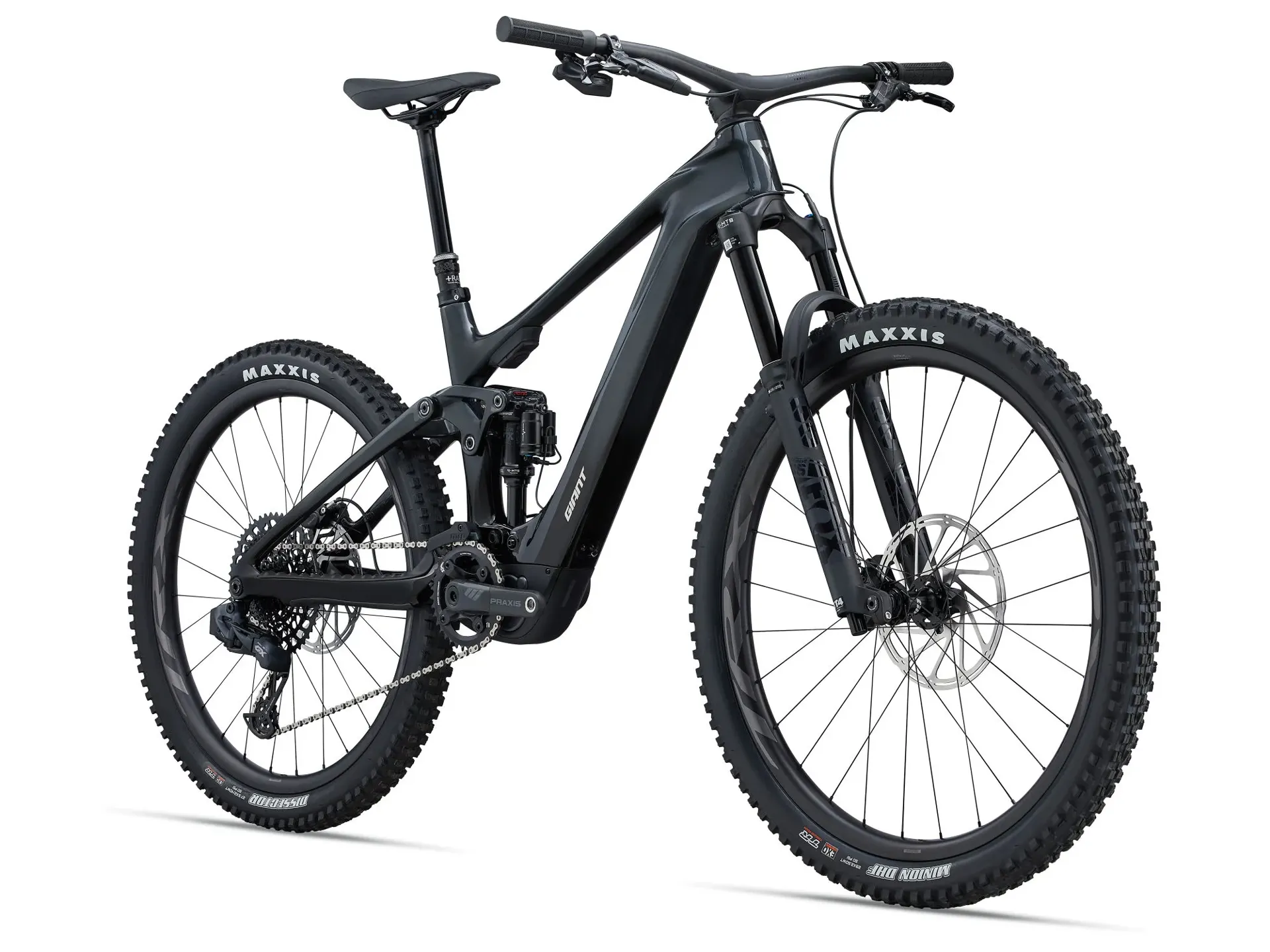

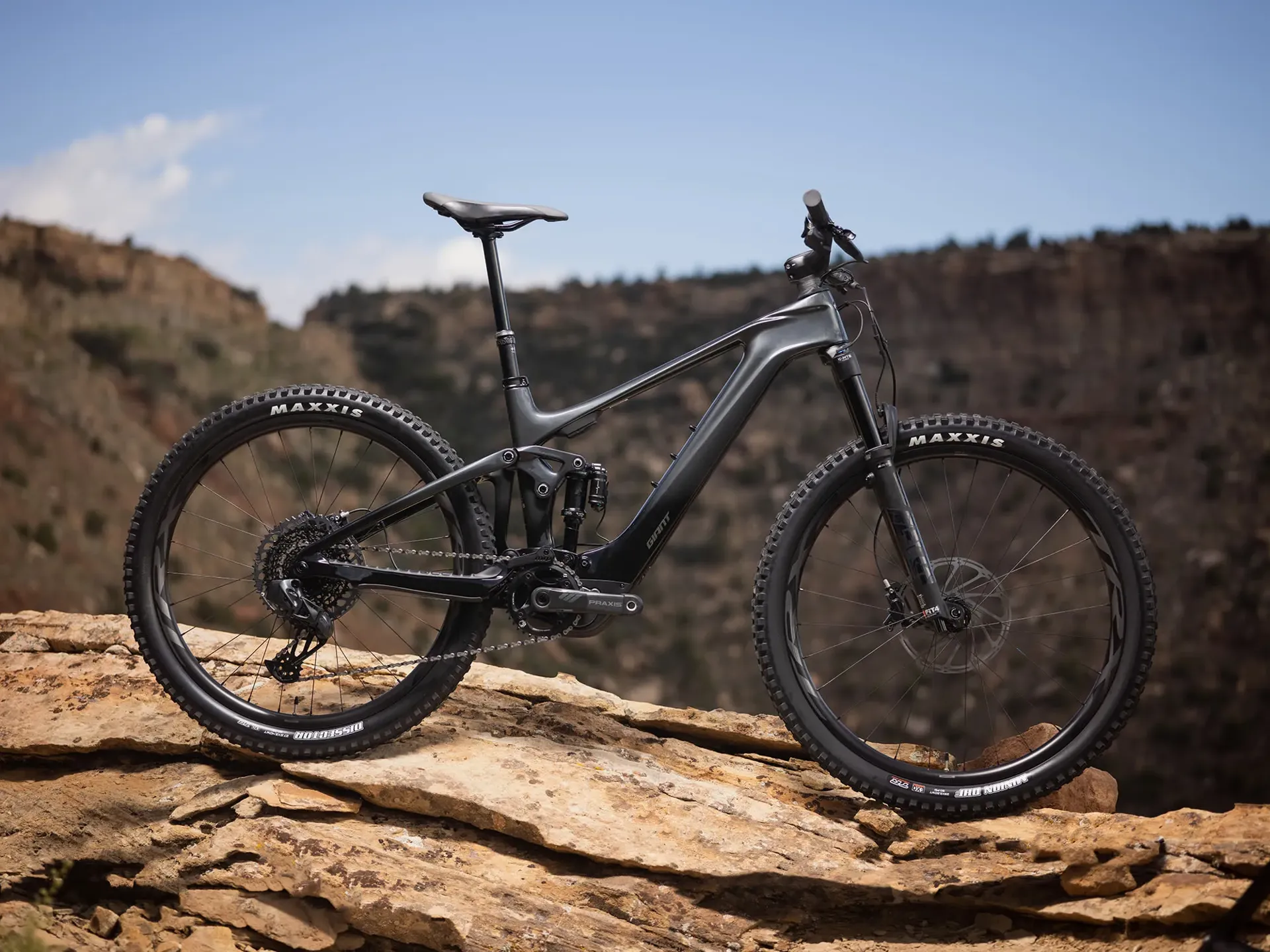

Giant - Trance X Advanced E+ EL 1 Electric Full Suspension Mountain Bike in Gunmetal Black

£5,399.00 £8,999.00 40% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

If you are not completely satisfied with your purchase, or simply no longer want the item, you can return it for a full refund or exchange. Items (excluding food, underwear, and e-gift vouchers) may be returned for any reason within 30 days, as long as they are unused, in their original packaging, and accompanied by a valid proof of purchase.

Accessories Returns

Online or in-store purchases can be returned to any of our stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If your item is incorrect or damaged please contact us instead.

Complete Form

Bike / Bulky Returns

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (01206 699311) and we will help arrange a collection. Bought or collected in store? Simply contact the store to get started.
FAQs
What happens if my item is faulty?
In the unlikely case that your item has developed a fault please contact us at [email protected] or call 01206 699311.
Can I cancel my order?
Yes, if we haven't shipped the order yet just contact us and we should be able to cancel the order for you. If it has already been shipped please refuse delivery, this will allow them to come back to us.
Can I return a bike?
We know that sometimes a short ride is what it takes to know if a bike is suitable. However, to be eligible for a full refund, the bicycle and its accessories must be clean and not display any damage or signs of wear, exceeding that which could be expected to establish that the bike is not suitable for the intended purpose.
I am returning a bike, can it be collected from home?
Yes, our courier collection fee is £30. However, you must use the original delivery packaging - if you do not have the original box, a new one will be sent at an additional cost of £60.
How do I return a product under warranty?
If you have a warranty issue, please contact us and we’ll guide you on the next steps. Please include your proof of purchase, as this is required for all warranty claims. Please Note: Not all faults are covered by warranty.

Giant - Trance X Advanced E+ EL 1 Electric Full Suspension Mountain Bike in Gunmetal Black

Season:2023

Brand:Giant

Code:2313304GUNBLK

Accelerate up climbs, float through rock gardens, experience more power, agility and control with this lightweight, full-suspension e-mtb. A new ultra-slim battery minimises weight so you can ride technical trails the way you always dreamed of.

Key Performance Factors:

  • Lighter weight - New EnergyPak 400 battery is designed to be ultra slim. You get all the power but in a smaller package that’s cleanly integrated with the composite frameset.

  • Advanced cockpit control - RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.

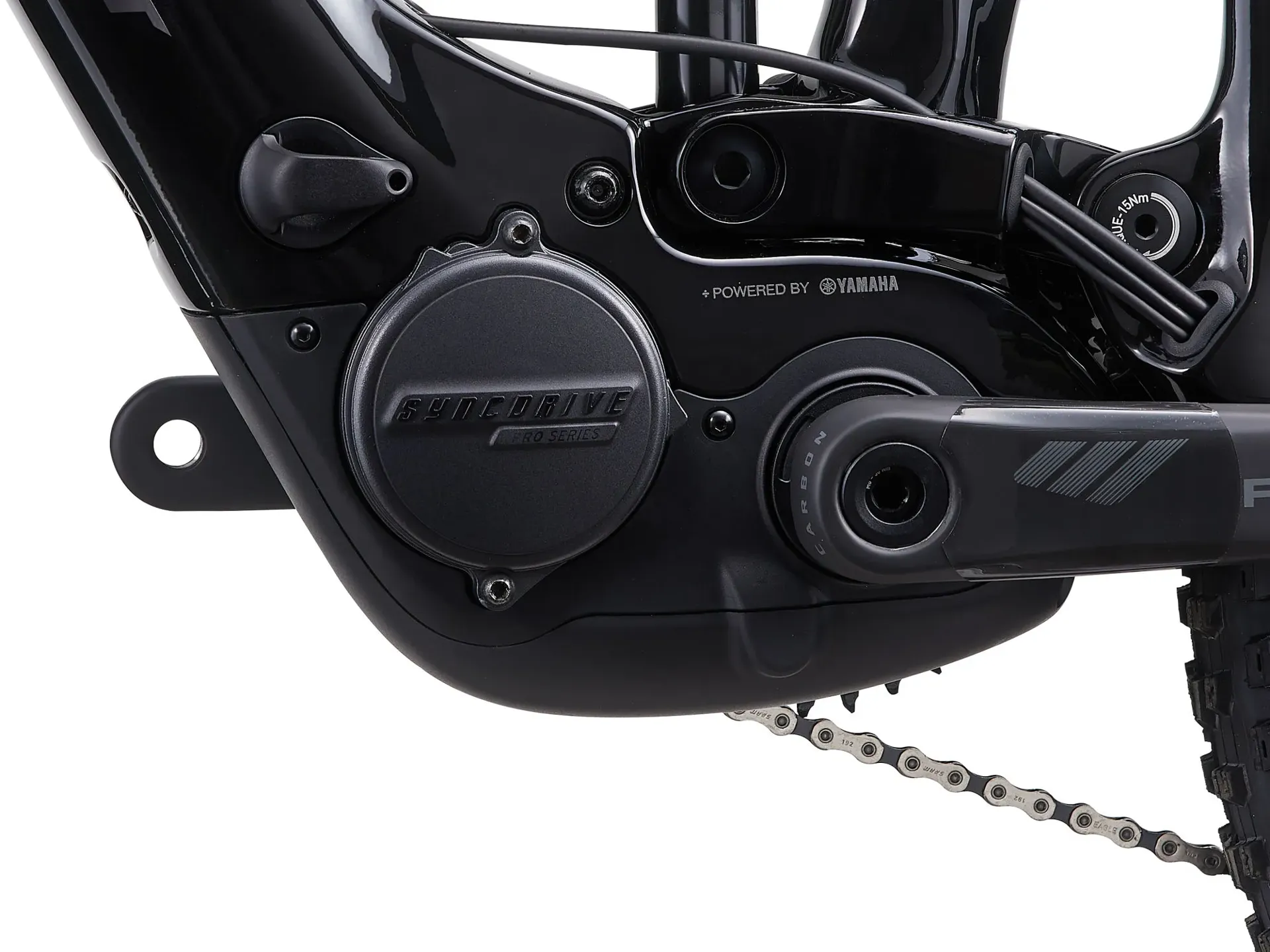

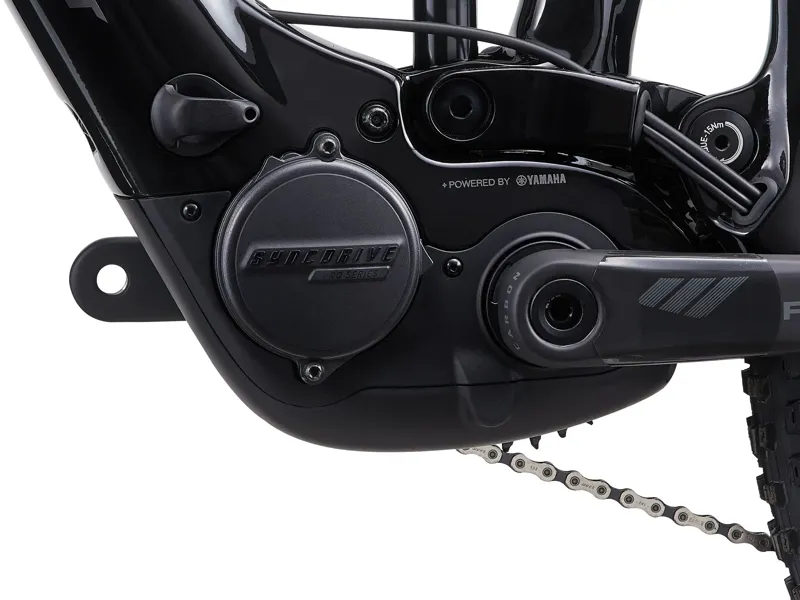

  • More power - New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails.

Technical Information
  • Motor
    Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
  • Controller
    Giant RideControl Ergo3, grip integrated remote

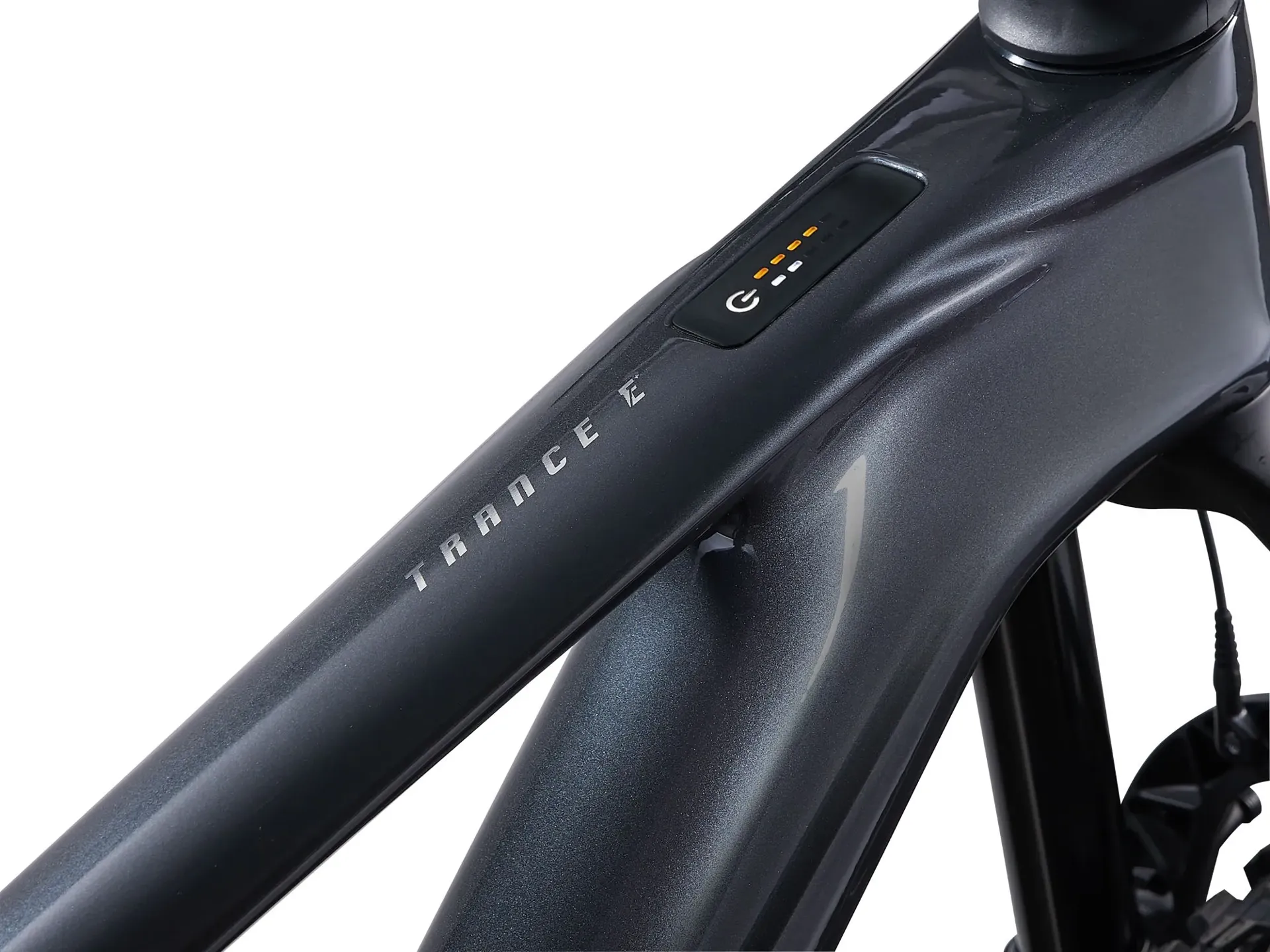

  • Display
    Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display"
  • Battery
    Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
  • Charger
    Giant EnergyPak 4A smart charger, 60% in 1:45
  • Connectivity
    Giant RideControl App enabled ANT+ wireless display signal with E-bike profile
  • Sizes
    S, M, L, XL
  • Colours
    Gunmetal Black/Black
  • Frame

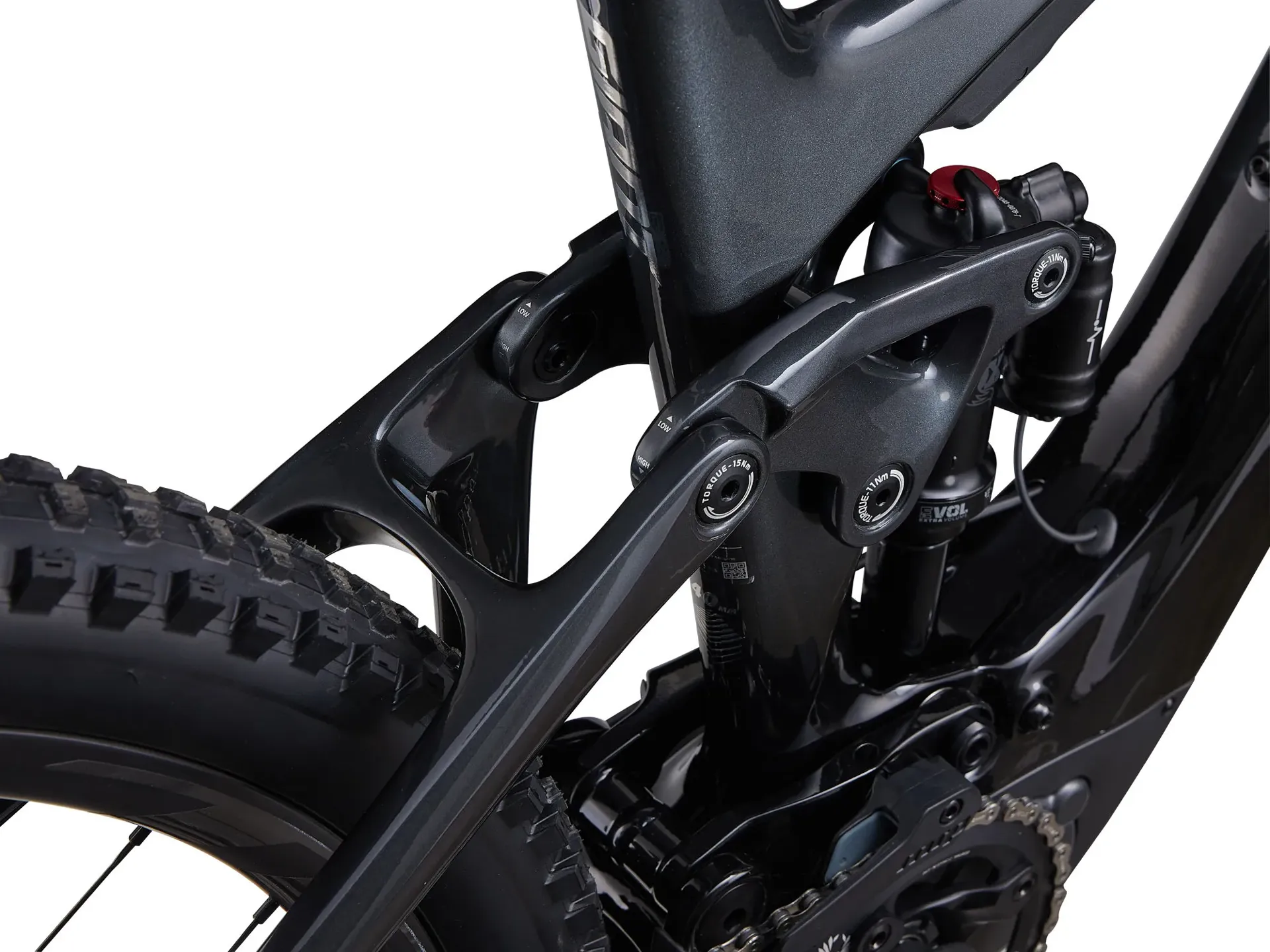

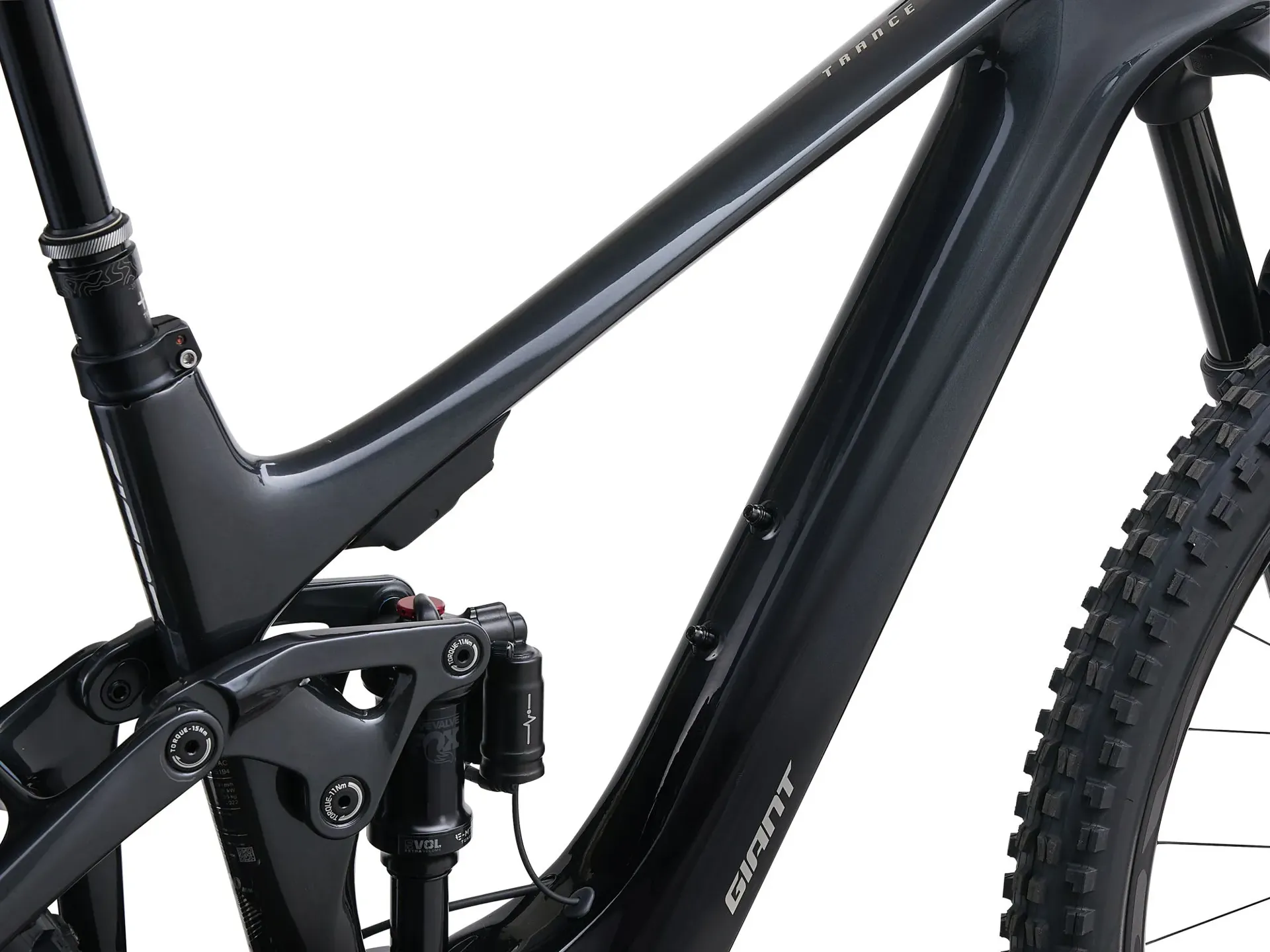

    Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
  • Fork
    Fox 36 Performance Elite Live Valve, 150mm travel, 44mm offset, Boost 110x15QR, electronic adaptive suspension, E-bike integrated
  • Shock
    Fox Float Performance Elite Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated
  • Handlebar
    Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 800mm, meets DH test standard
  • Grips
    Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL), Integrated for Ergo3 remote button left or right (optional)
  • Stem
    Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 40/45/50mm Reach, +3°/0°/-3° Adjust System
  • Seatpost
    Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
  • Saddle
    Giant Romero, Neutral
  • Pedals
    n/a
  • Shifters
    SRAM AXS Rocker Paddle, wireless electronic shifting
  • Front Derailleur
    MRP HD2 co-moulded chain guide
  • Rear Derailleur
    SRAM GX Eagle AXS
  • Brakes
    SRAM Code R, hydraulic disc, 220mm[F] /200mm[R]
  • Brake Levers
    SRAM Code R
  • Cassette
    SRAM XG-1275, 10-52T, 12-speed
  • Chain
    SRAM GX Eagle PowerLock
  • Crankset
    Praxis Performance Carbon e-crank arms, (S:160,M/L:165, XL:170) SRAM X-SYNC Eagle 36T chain ring
  • Bottom Bracket
    n/a
  • Rims
    TRX 2 Hookless Clincher, 29" [F] / 27.5" [R], 30mm inner width
  • Hubs
    TRX 2 MTB Alloy Hub, 6 Bolt, Pawl Driver (3 Pawl 30T) SRAM XD, 110 x 15 [F] / 148 x 12 [R] Thru-axle
  • Tyres
    Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
  • Extras
    Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied
  • Lighting
    Optional: Giant Recon series E-bike lights available and direct connectable
Sizing Information
Frame SizeRider Height (cm)
S163 cm to 174 cm
M171 cm to 182 cm
L176 cm to 186 cm
XL183 cm to 193 cm
Sizing should be used as a reference only.

SMLXL
LOW|HIGHLOW|HIGHLOW|HIGHLOW|HIGH
Seat Tube Length(MM)400425450475
Seat Tube Angle77.2°|78.0°76.0°|76.7°76.0°|76.7°76.0°|76.7°
Top Tube Length(MM)577|575607|605636|634665|663
Head Tube Length(MM)95100115130
Head Tube Angle65.7°|66.5°65.8°|66.5°65.8°|66.5°65.8°|66.5°
Fork Rake(MM)44444444
Trail(MM)113.1|108.0113.1|108.0113.1|108.0113.1|108.0
Wheelbase(MM)1194|11951215|12121244|12441275|1275
Chain Stay Length(MM)447|447447|447447|447447|447
Bottom Bracket Drop(MM)10101010
Stack(MM)607|601611|605625|619639|633
Reach(MM)439|447457|462480|487505|513
Stand Over Height(MM)726|735733|742732|741741|750
Handlebar Width(MM)780780780780
Stem Length(MM)40405050
Crank Length(MM)160165165170
Wheel SizeR27.5" / FR27.5" / FR27.5" / FR27.5" / F
