Washboard descents, sketchy dirt, gravel and rocks of all shapes and sizes. You never know what you'll get on a gravel ride. This composite gravel machine has front suspension and engineered compliance to help you float through it all with speed and control.
Washboard descents, sketchy dirt, gravel and rocks of all shapes and sizes. You never know what you'll get on a gravel ride. This composite gravel machine has front suspension and engineered compliance to help you float through it all with speed and control.
Giant

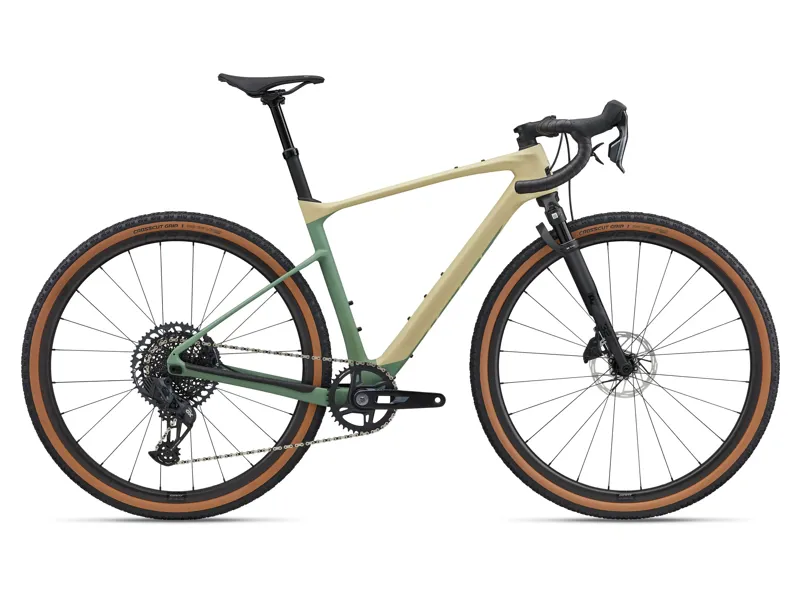

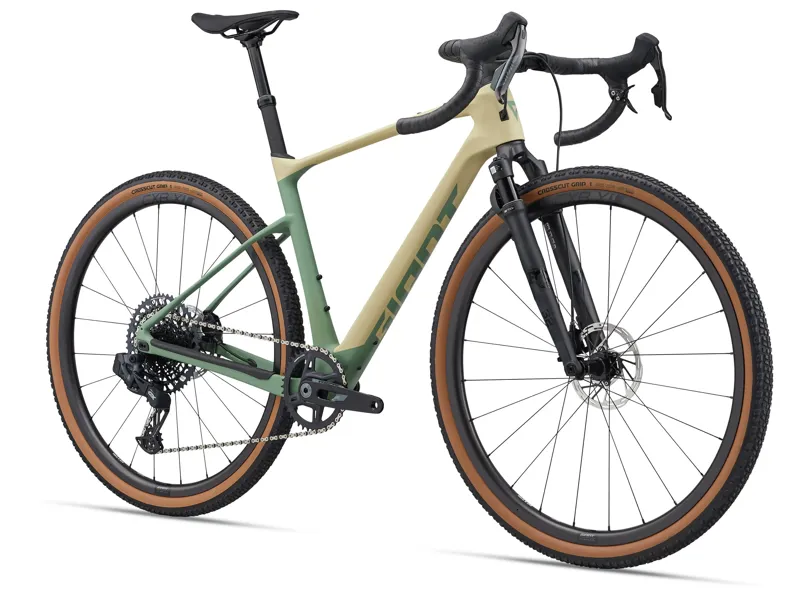

Giant - Revolt X Advanced Pro Gravel Bike 1 in Pale Olive

£4,999.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

If you are not completely satisfied with your purchase, or simply no longer want the item, you can return it for a full refund or exchange. Items (excluding food, underwear, and e-gift vouchers) may be returned for any reason within 30 days, as long as they are unused, in their original packaging, and accompanied by a valid proof of purchase.

Accessories Returns

Online or in-store purchases can be returned to any of our stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If your item is incorrect or damaged please contact us instead.

Complete Form

Bike / Bulky Returns

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (01206 699311) and we will help arrange a collection. Bought or collected in store? Simply contact the store to get started.
FAQs
What happens if my item is faulty?
In the unlikely case that your item has developed a fault please contact us at [email protected] or call 01206 699311.
Can I cancel my order?
Yes, if we haven't shipped the order yet just contact us and we should be able to cancel the order for you. If it has already been shipped please refuse delivery, this will allow them to come back to us.
Can I return a bike?
We know that sometimes a short ride is what it takes to know if a bike is suitable. However, to be eligible for a full refund, the bicycle and its accessories must be clean and not display any damage or signs of wear, exceeding that which could be expected to establish that the bike is not suitable for the intended purpose.
I am returning a bike, can it be collected from home?
Yes, our courier collection fee is £30. However, you must use the original delivery packaging - if you do not have the original box, a new one will be sent at an additional cost of £60.
How do I return a product under warranty?
If you have a warranty issue, please contact us and we’ll guide you on the next steps. Please include your proof of purchase, as this is required for all warranty claims. Please Note: Not all faults are covered by warranty.

Giant - Revolt X Advanced Pro Gravel Bike 1 in Pale Olive

Season:2026

Brand:Giant

Code:9080043PaleOLI

Washboard descents, sketchy dirt, gravel and rocks of all shapes and sizes. You never know what you'll get on a gravel ride. This composite gravel machine has front suspension and engineered compliance to help you float through it all with speed and control.

Features

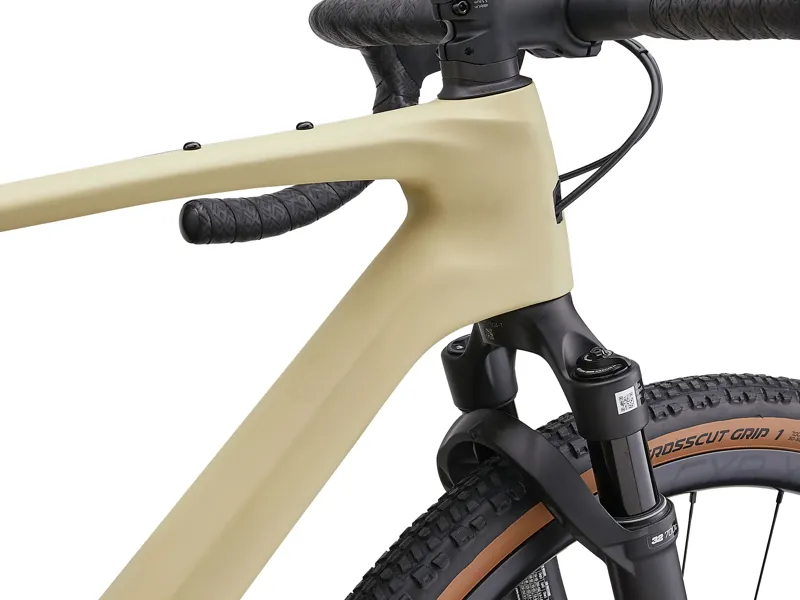

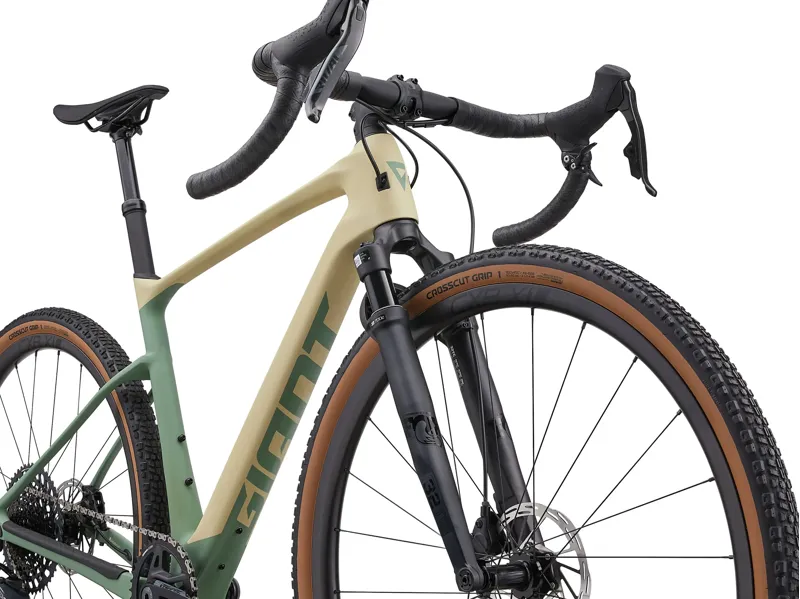

Smooth control: Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster on rugged gravel and dirt.

Tuned compliance: Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.

Adaptable to the terrain: A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can choose the included dropper/suspension seatpost for added

Technologies

  • Advanced Composite Technology: Giant's High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
  • D Fuse Technology: The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
  • Over Drive: Giant's original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system's oversized headset bearings (1 1/4" lower and 1 1/8" upper for road, 1 1/2" lower and 1 1/8" upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
  • Tubeless System: Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant's Tubeless System makes it easier than ever to experience all these benefits.

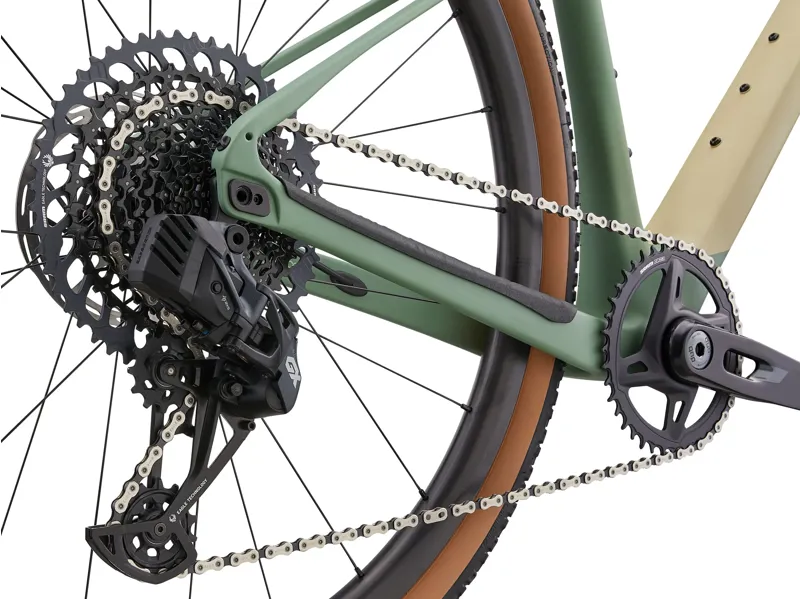

  • Flip Chip Dropout: Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
Technical Information
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
  • Fork
    Fox 32 Float TC, Performance Elite, 40mm, FIT 4 damper, 12x100mm Kabolt thru-axle
  • Handlebar
    Giant Contact SL XR D-Fuse, 31.8mm — XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
  • Stem
    Giant Contact, 8° — XS:50mm, S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
  • Seatpost

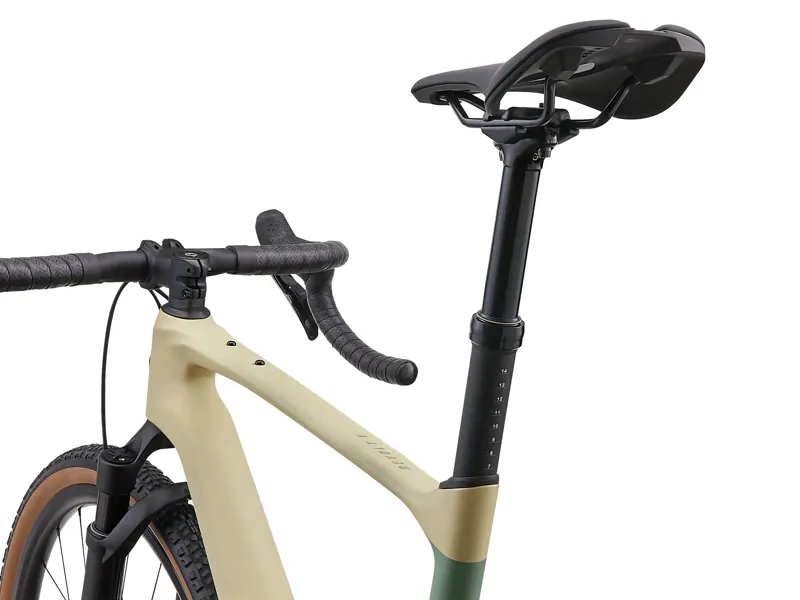

    Post Moderne dropper, 30.9mm, 30mm suspension — XS:365mm / 75mm drop, S:415mm / 100mm drop
  • Saddle
    Giant Grit SL
  • Shifters
    SRAM Rival AXS E1, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    SRAM GX Eagle AXS
  • Brakes
    SRAM Rival AXS E1 hydraulic, SRAM PaceLine rotors (F:160mm / R:160mm)
  • Brake Levers
    SRAM Rival AXS E1 hydraulic
  • Cassette
    SRAM XG-1275, 12-speed, 10x52
  • Chain
    SRAM GX Eagle
  • Crankset
    SRAM Rival XPLR E1 DUB, 40t — XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    SRAM DUB, press fit
  • Rims
    Giant CXR 1 X1 WheelSystem, 25.8mm internal
  • Hubs
    Front: Giant CXR X alloy, CenterLock, 12mm thru-axle — Rear: Giant CXR X alloy, 60t ratchet, CenterLock, 12mm thru-axle
  • Spokes
    Sapim Laser
  • Tyres
    Giant CrossCut Grip, 700x45c, tubeless
  • Extras
    Tubeless prepared
    Flip chip tyre clearance: Long: 53mm / Short: 45mm
  • Max Tyre Clearance
    53mm (long position)
Sizing Information
Frame SizeRider Height (cm)
S159 cm to 171 cm
M169 cm to 181 cm
ML174 cm to 186 cm
L179 cm to 191 cm
XL189 cm to 200 cm
Sizing should be used as a reference only.
