The exceptionally versatile intrigue x advanced was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between.
The exceptionally versatile intrigue x advanced was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between.
Liv

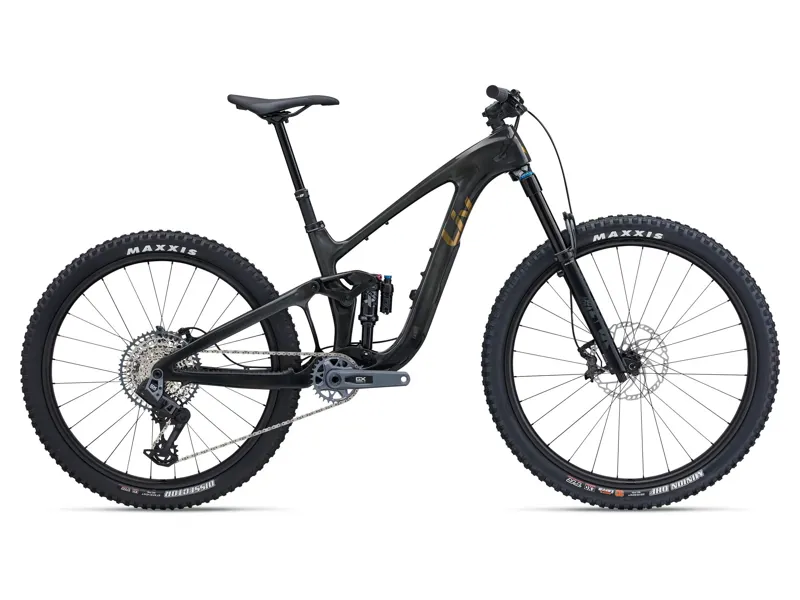

Liv - Intrigue X Advanced 1 Full Suspension Trail Mountain Bike in Gloss Raw Carbon/Chrome

£4,799.00 £5,999.00 20% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

If you are not completely satisfied with your purchase, or simply no longer want the item, you can return it for a full refund or exchange. Items (excluding food, underwear, and e-gift vouchers) may be returned for any reason within 30 days, as long as they are unused, in their original packaging, and accompanied by a valid proof of purchase.

Accessories Returns

Online or in-store purchases can be returned to any of our stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If your item is incorrect or damaged please contact us instead.

Complete Form

Bike / Bulky Returns

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (01206 699311) and we will help arrange a collection. Bought or collected in store? Simply contact the store to get started.
FAQs
What happens if my item is faulty?
In the unlikely case that your item has developed a fault please contact us at [email protected] or call 01206 699311.
Can I cancel my order?
Yes, if we haven't shipped the order yet just contact us and we should be able to cancel the order for you. If it has already been shipped please refuse delivery, this will allow them to come back to us.
Can I return a bike?
We know that sometimes a short ride is what it takes to know if a bike is suitable. However, to be eligible for a full refund, the bicycle and its accessories must be clean and not display any damage or signs of wear, exceeding that which could be expected to establish that the bike is not suitable for the intended purpose.
I am returning a bike, can it be collected from home?
Yes, our courier collection fee is £30. However, you must use the original delivery packaging - if you do not have the original box, a new one will be sent at an additional cost of £60.
How do I return a product under warranty?
If you have a warranty issue, please contact us and we’ll guide you on the next steps. Please include your proof of purchase, as this is required for all warranty claims. Please Note: Not all faults are covered by warranty.

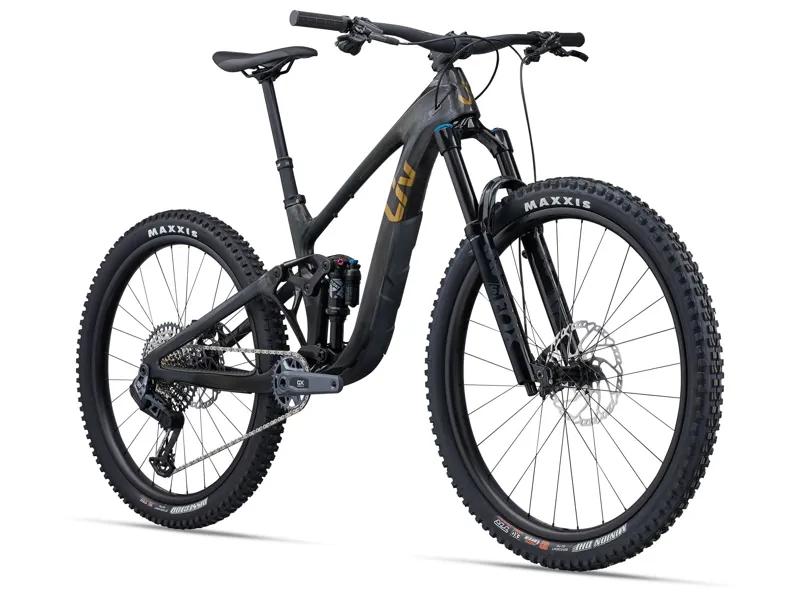

Liv - Intrigue X Advanced 1 Full Suspension Trail Mountain Bike in Gloss Raw Carbon/Chrome

Season:2024

Brand:Liv

Code:9059010RawCBN

The exceptionally versatile intrigue x advanced was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between.

Extremely customisation with adjustable geometry, frame storage, and wheel options, the intrigue x advanced delivers extra performance and fun.

Features:

  • Performance Mid Travel Trail - Constructed with lightweight Advanced-grade composite for an agile, responsive ride, the frame also boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.
  • Adjustable Frame Geometry - For ultimate adjustability, the Intrigue X Advanced features flip chip – Maestro 3 and the new flip chip – headset allowing you to customise the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimise your riding position for better handling and s
  • Best of Both Wheels - Frame sizes XS and S are solely designed for an MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimises rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customise your se
Technical Information
  • Sizes
    XS, S, M, L
  • Colours
    Gloss Raw Carbon/Chrome

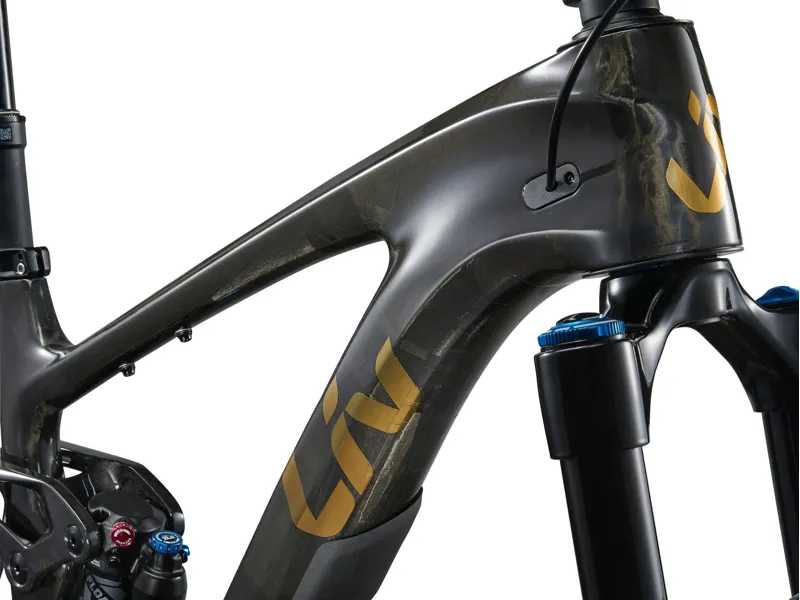

  • Frame
    Advanced-grade composite front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage

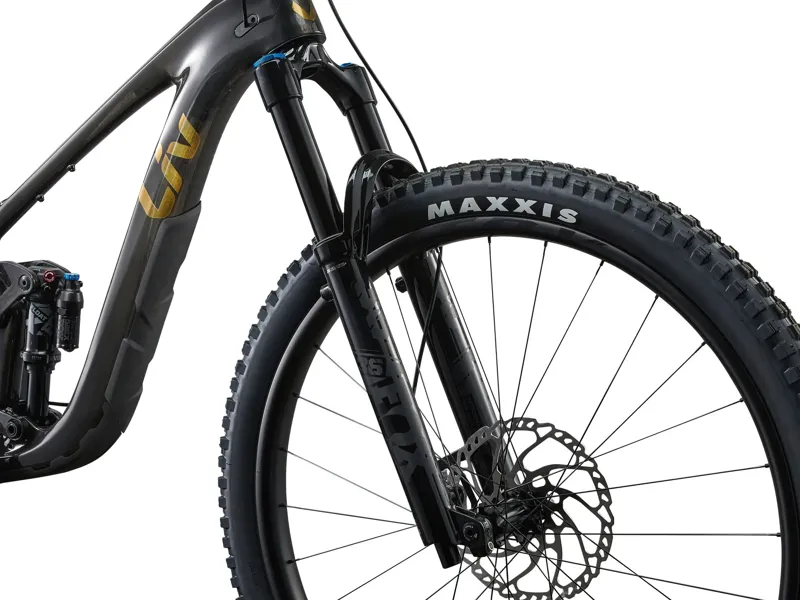

  • Fork
    Fox 36 Performance Elite, 150mm, Grip 2 damper, Boost 15x110 Kabolt X, tapered, 44mm offset
  • Shock
    Fox Float X Performance Elite, 185x52.5, custom tuned for Liv
  • Handlebar
    Giant Contact SLR TR35, 20mm rise, composite
  • Grips
    Liv Tactal Pro Single Lock-on
  • Stem
    Giant Contact SL, 35mm

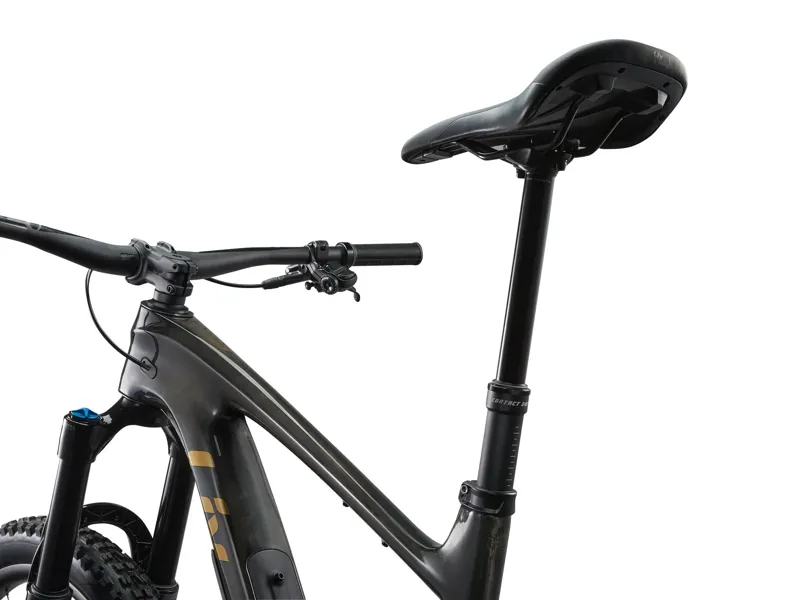

  • Seatpost
    Giant Contact Switch, adjustable dropper, remote XS&S: 140-170mm travel / 30.9 x 470mm M&L: 170-200mm travel / 30.9 x 530mm
  • Saddle
    Liv Sylvia
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters
    SRAM AXS Pod, 1x12
  • Front Derailleur
    N/A

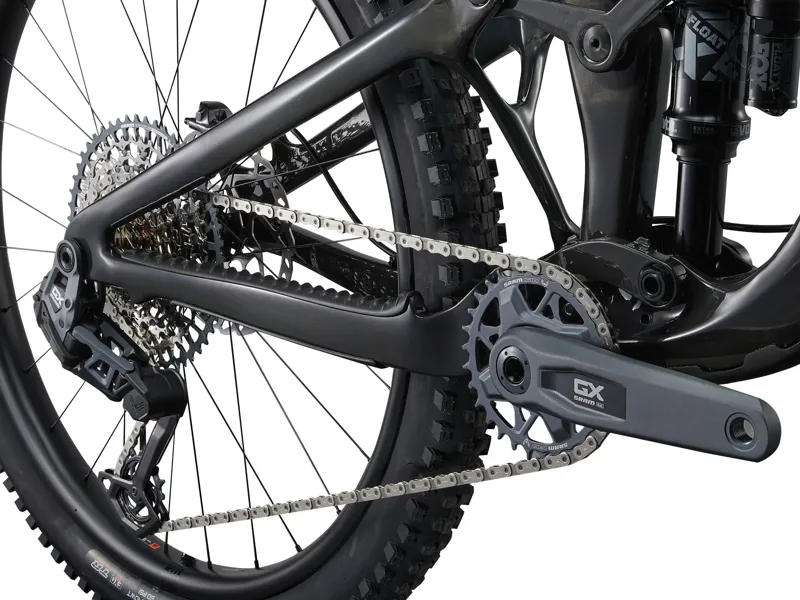

  • Rear Derailleur
    SRAM GX Eagle Transmission AXS
  • Brakes
    Shimano XT M8120, hydraulic, Shimano RT-66 rotors [F] 203mm, [R] 180mm
  • Brake Levers
    Shimano XT BL-8100
  • Cassette
    SRAM GX CS 1275 T-Type, 10x52
  • Chain
    SRAM GX T-Type
  • Crankset
    SRAM GX T-Type, 30t, 55mm chainline
  • Bottom Bracket
    SRAM DUB, press fit
  • Rims
    Giant TRX 27.5""/29"" hookless carbon wheelsystem 30mm rim inner width 40mm outer width 72t, POE, 28 SP spokes, DBL technology XD driver body 27.5""R/29""F for frame sizes XS/S 29""F&R for frame sizes for M/L
  • Hubs
    [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
  • Spokes
    Sapim
  • Tyres
    Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
  • Extras
    3M tailgate protector, factory tubeless set up, integrated down tube storage bag, max tyre size 2.5", max chainring size 34t
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
Sizing Information
Frame SizeRider Height (cm)
XS150 cm to 163 cm
S158 cm to 169 cm
M164 cm to 175 cm
L170 cm to 181 cm
Sizing should be used as a reference only.

XSSML
LOW|MID|HIGHLOW|MID|HIGHLOW|MID|HIGHLOW|MID|HIGH
Seat Tube Length(MM)370390420450
Seat Tube Angle76.2°|76.6°|76.9°76.2°|76.6°|76.9°76.8°|77.2°|77.5°76.8°|77.2°|77.5°
Top Tube Length(MM)548|547|546564|563|562582|581|580603|602|601
Head Tube Length(MM)95100105110
Head Tube Angle64.4°|64.8°|65.1°64.4°|64.8°|65.1°64.4°|64.8°|65.1°64.4°|64.8°|65.1°
Fork Rake(MM)44444444
Trail(MM)134.2|131.3|128.3134.1|131.3|128.3134.1|131.3|128.3134.0|131.3|128.3
Wheelbase(MM)1159|1159|11581176|1176|11751202|1201|12011224|1224|1223
Chain Stay Length(MM)440|439|438440|439|438440|439|438440|439|438
Bottom Bracket Drop(MM)25|20|1525|20|1540|35|3040|35|30
Stack(MM)615|613|610620|617|614621|619|616626|623|620
Reach(MM)397|401|405412|415|420436|440|444456|459|464
Stand Over Height(MM)730|734|738733|737|742745|749|754767|771|776
Handlebar Width(MM)760760760780
Stem Length(MM)40505050
Crank Length(MM)165170170170
